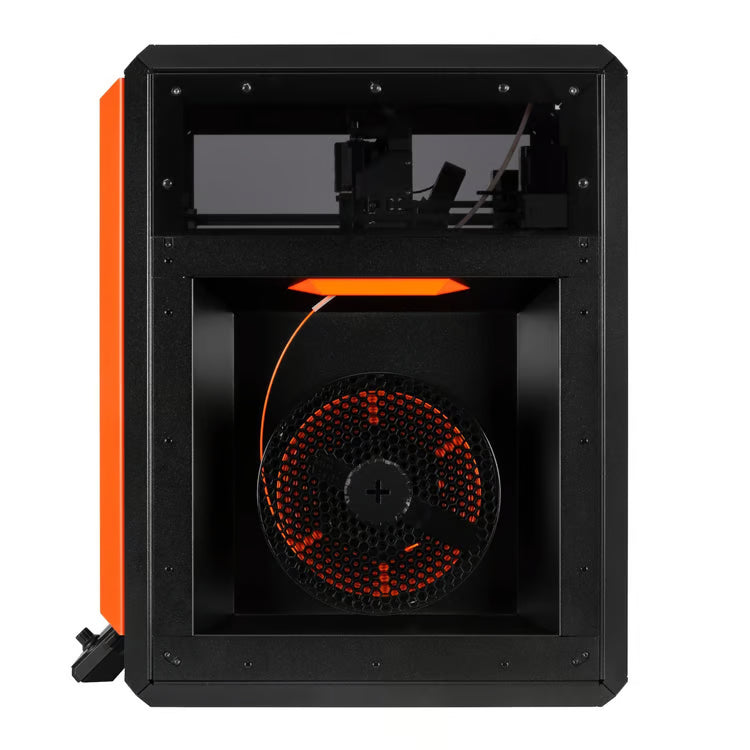

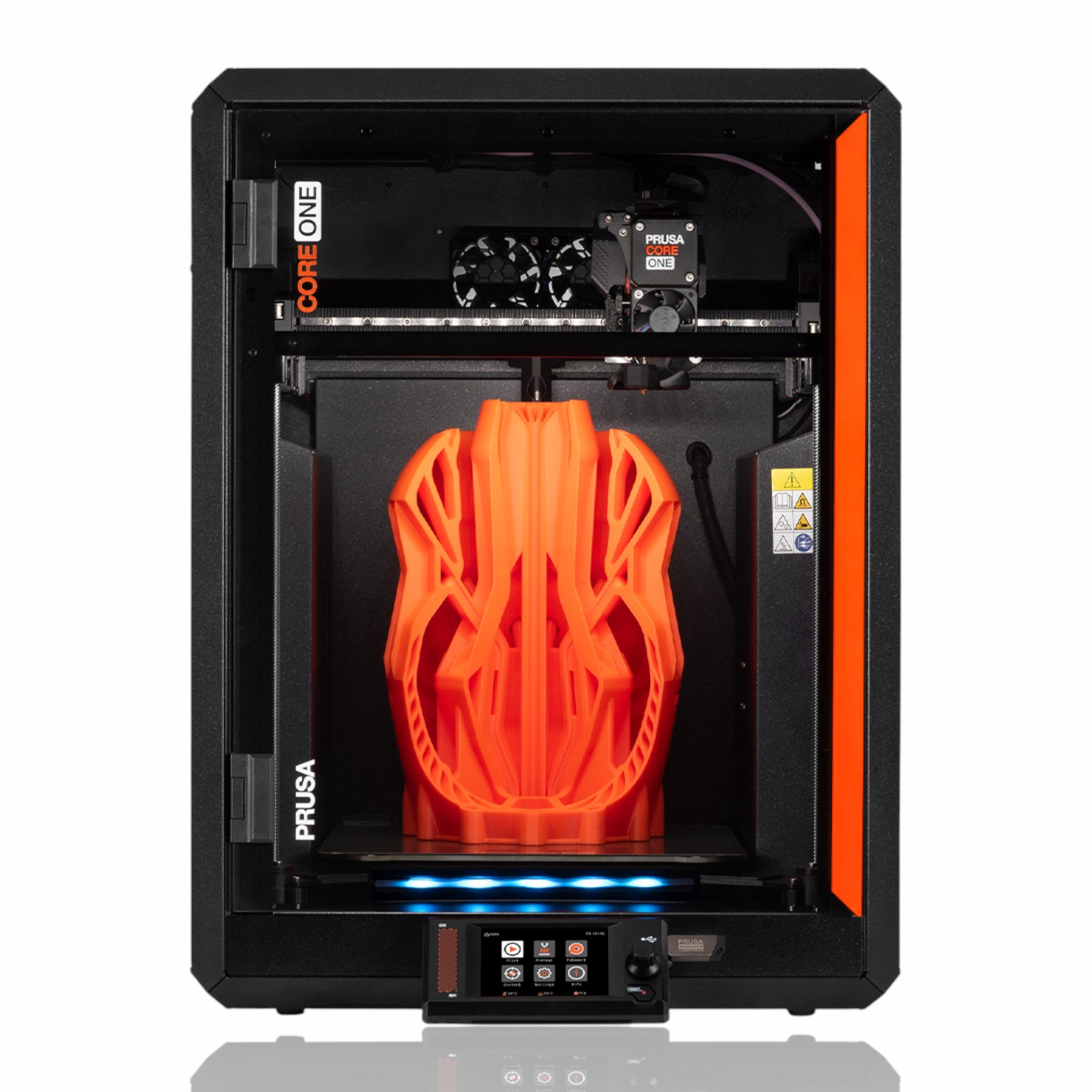

🌟 Prusa CORE One+ Kit – Enclosed Chamber FDM 3D Printer for Assembly
The Prusa CORE One+ Kit is the assembly version of the award-winning CORE One+: the same robust and reliable machine, with the advantage of building it yourself over a weekend, getting to know every component inside out. With an enclosed chamber, CoreXY, active temperature control up to 55°C, Nextruder extruder with 360° cooling, steel exoskeleton, and ready to print PLA with the door closed thanks to the automatic ventilation system, it is the ideal choice for makers, enthusiasts, and professionals who want a high-performance machine with a complete understanding of the hardware.
🔹 What sets the Prusa CORE One+ Kit apart?
- Enclosed chamber with active temperature control up to 55°C — automatic ventilation for PLA/PETG with the door closed; enclosed chamber for ABS, ASA, PC, and PA without warping.
- Automatic ventilation system — opens for low-temperature materials and closes for technical materials, without manual intervention.
- Nextruder extruder with 360° cooling — overhangs up to 75° without additional supports; proven dimensional accuracy.
- All-steel exoskeleton — maximum rigidity, simple maintenance with a screwdriver, no glued parts.
- New bayonet spool holder — compatible with various spool sizes; ready for direct-feed drybox.
- Integrated Input Shaper + Phase Stepping — eliminates resonance and vibrations for accurate high-speed prints.
- Loadcell Sensor — automatic first layer leveling without manual adjustments.
- Two filament sensors — in the side path (with FLEX mode via physical switch) and in the print head.
- 3.5" 65k color touchscreen + integrated RGB status bar in the chamber and on the display.
- Full offline mode — no account or internet connection required; removable Wi-Fi module for high-security environments.
- MMU3 compatible — already available for CORE One, up to 5 filaments simultaneously.
- Prepared for INDX upgrade (coming soon) — tool changing system for up to 8 materials with magnetic induction heating and near-zero waste.
- HT Hotend Upgrade available — prints up to 400°C for industrial materials like PEKK-CF, PPS-CF, PPSU, and PPA.
- Open-source firmware and software — PrusaSlicer, Prusa Connect, and Prusa App included.
✅ Advantages of the Prusa CORE One+ Kit
- Assembling the kit is a complete learning experience — you'll get to know the machine inside and out.
- 50% less space than the MK4S with Enclosure, with 30% more print volume.
- Internally tested profiles for over 200 filaments.
- Fully modifiable and upgradeable — no vendor lock-in.
- Compatible with MK4S accessories: print sheets, nozzles, and hotends.
- Free access to over 1 million models on Printables.com.
-
⚙️ Technical Specifications
- Technology: FDM — enclosed chamber with CoreXY
- Print volume: 250 × 220 × 270 mm
- Extruder: Nextruder Direct Drive | Planetary gear 10:1 | E3D V6 compatible (with adapter)
- Max nozzle temperature: 290°C | Max bed temperature: 120°C | Max chamber temperature: 55°C
- Included nozzle: 0.4 mm high-flow CHT (brass) | Layer height: 0.05 – 0.30 mm
- Mainboard: xBuddy 32-bit with STM32 | Drivers: Trinamic 2130 | Motors: 0.9° on X and Y axes
- Display: 3.5" 65k color with touch | Connectivity: Ethernet + NFC + removable Wi-Fi
- Consumption: 90W (PLA) / 110W (ABS) | PSU: 240W
- Dimensions: 415 × 444 × 555 mm | Weight: 22.5 kg
Supported filaments: PLA, PETG, Flex, PVA, PC, PP, CPE, PVB; with optional advanced filtration system: ABS, ASA, HIPS, PA
💡 Notes and Recommendations
- For ABS, ASA, HIPS, and PA, the optional Advanced Filtration System is required.
- The INDX upgrade (multi-material up to 8 materials) is not yet available — coming soon.
- The HT Hotend Upgrade (printing up to 400°C) is sold separately and compatible with the entire CORE One family.
- Internal camera and advanced filtration system are optional accessories sold separately.
- Also available in an assembled version for those who prefer to print immediately.
