🌟 Original Prusa XL – Large-Format FDM 3D Printer with Toolchanger
The Original Prusa XL is Prusa's large-format 3D printer, designed for true, waste-free multi-material printing thanks to its ultra-fast toolchanger system. Available with 1, 2, or 5 toolheads — and progressively upgradable — it allows combining up to 5 different materials or colors in a single print, with toolhead changes in fractions of a second and virtually zero purge. With a print volume of 360 × 360 × 360 mm, a segmented bed with 16 independent tiles, Input Shaper, Phase Stepping, and Nextruder Direct Drive, it is the fastest and most precise multi-material desktop printer on the market. Also available in a Critical Infrastructure edition without a Wi-Fi module.
🔹 What sets the Original Prusa XL apart?
- Available with 1, 2, or 5 toolheads — start with a single toolhead and progressively expand as per your needs, without replacing the printer.
- Ultra-fast toolchanger — toolhead changes in fractions of a second with filament already loaded in the nozzle, without filament change procedures or long waiting periods.
- Waste-free multi-material printing — no mandatory purge tower; with properly dried filaments and the wipe-to-infill option, it's possible to print without any filament waste.
- Spool Join — automatic spool change when one empties, allowing continuous prints of up to 10 kg with five 2 kg spools without manual intervention.
- Silicone print head support (in partnership with Filament2) — printing with two-component liquid silicone, heat-resistant, directly on the XL.
- Segmented bed with 16 individual tiles — independent temperature control per zone, without thermal deformation and with energy saving when printing small parts.

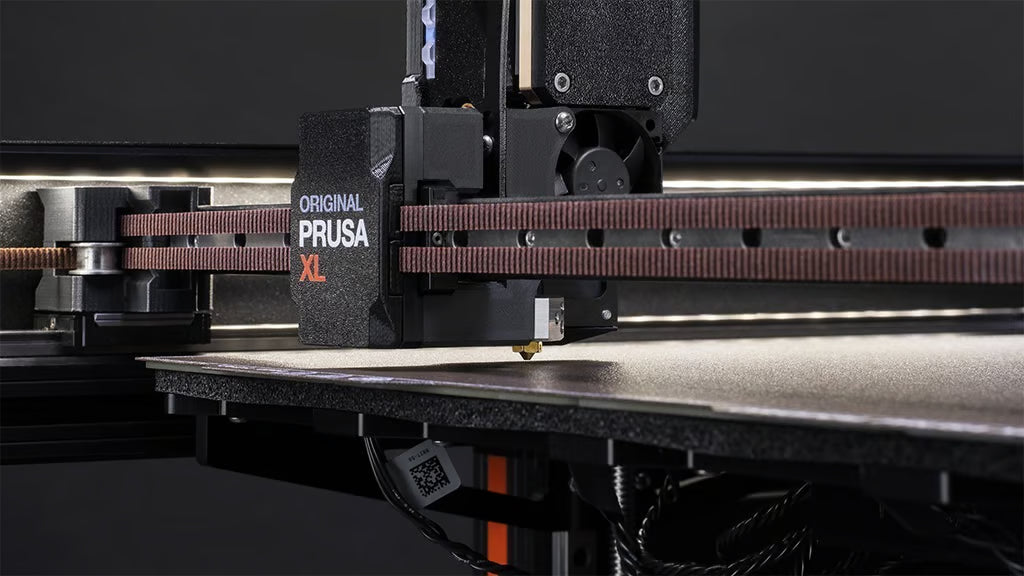

- Nextruder Direct Drive with 10:1 planetary gear — overhangs up to 75°, effortless flexible printing, 0.2 mm precision.
- Input Shaper + Pressure Advance + Phase Stepping — high speed without sacrificing quality; silent operation even at high speeds.
- Automatic leveling by Loadcell sensor — perfect first layer on any surface, reflective or textured, without manual adjustments.
- 3.5" touchscreen with 65k colors — G-code preview, Cancel Object, QR codes, and intuitive navigation.
- Power failure recovery — hardware-based, including network prints.
- Full offline mode — no account or internet connection required; removable Wi-Fi module for high-security environments.
- Open-source firmware and software — PrusaSlicer with tested profiles for over 180 filaments.
✅ Advantages of the Original Prusa XL
- The fastest and least wasteful multi-material desktop printer on the market.
- Upgradable from 1 to 2 or 5 toolheads without replacing the machine.
- Large volume of 360 × 360 × 360 mm for large-scale parts or series production.
- Free combination of materials: PLA + Flex, PCCF exterior + PETG interior, PLA supports for PETG parts.
- Compatible with Prusa Connect, Prusa App, and PrusaSlicer.
- Free access to over 1 million models on Printables.com.
⚙️ Technical Specifications
- Technology: FDM — open frame with toolchanger
- Print volume: 360 × 360 × 360 mm
- Available toolheads: 1, 2, or 5 (upgradable)
- Extruder: Nextruder Direct Drive | 10:1 planetary gear | E3D V6 compatible (with adapter)
- Max nozzle temperature: 290°C | Max bed temperature: 120°C
- Nozzle included: 0.4 mm (brass) | Layer height: 0.05 – 0.30 mm
- Bed: 16 individual tiles with independent control | Surface: removable satin magnetic sheet
- Mainboard: xBuddy 32-bit with STM32 | Drivers: Trinamic 2130 | Motors: 1.8°
- Display: 3.5" color 65k with touch | Connectivity: Ethernet + removable Wi-Fi
- Average power consumption during printing: 235W | PSU: 240W
- Dimensions: 700 × 900 × 720 mm | Weight: 27.9 kg (1 toolhead) / 29.3 kg (2 toolheads) / 33.7 kg (5 toolheads)
Supported filaments: PLA, PETG, Flex, PVA, PC, PP, CPE, PVB; with optional Enclosure: ABS, ASA, HIPS, PA
💡 Notes and Recommendations
- Available with 1, 2, or 5 toolheads — upgradable at any time with expansion kits sold separately.
- For ABS, ASA, HIPS, and PA, the official Enclosure with advanced filtering system is required, sold separately.
- Critical Infrastructure Edition available without Wi-Fi module for high-security environments — contact for a quote.
- The silicone toolhead (liquid silicone printing) is an optional accessory developed in partnership with Filament2.
- Requires installation of the toolhead(s) and display before first use.
