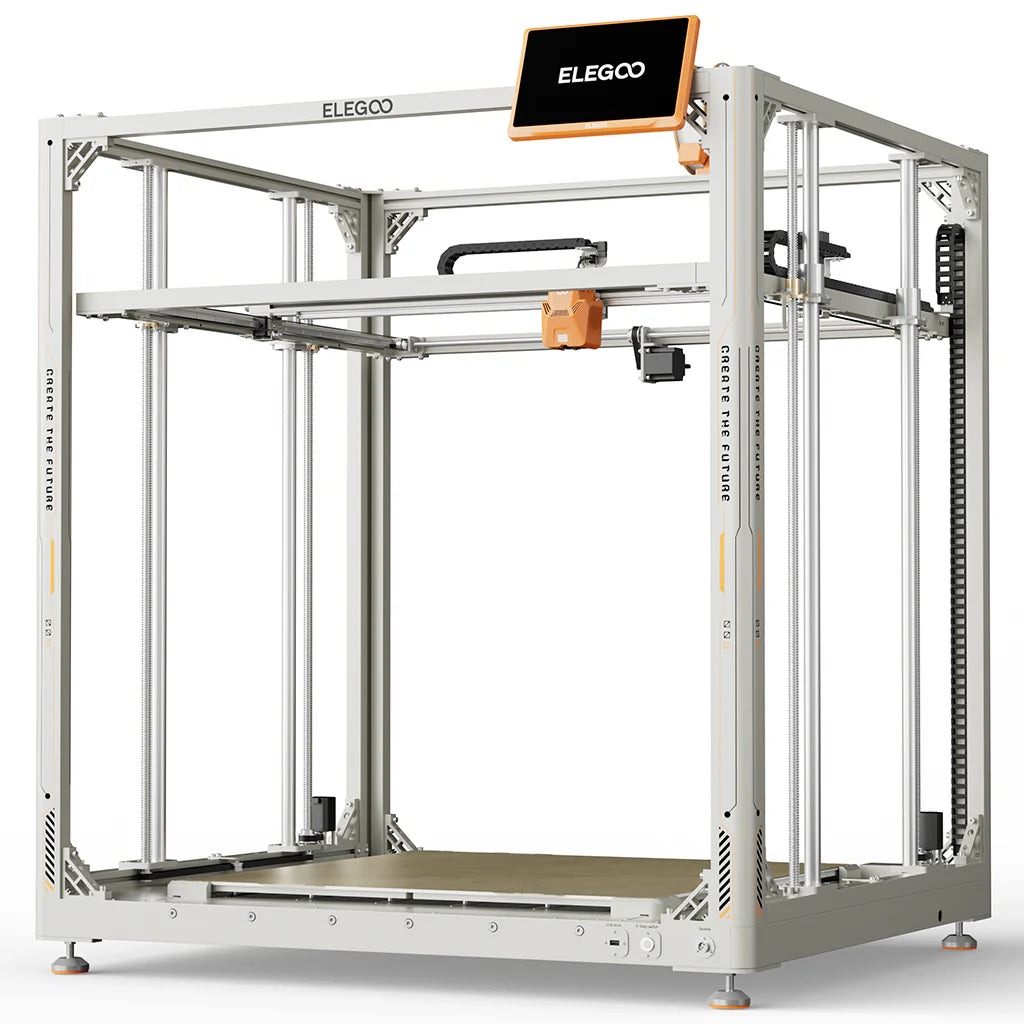

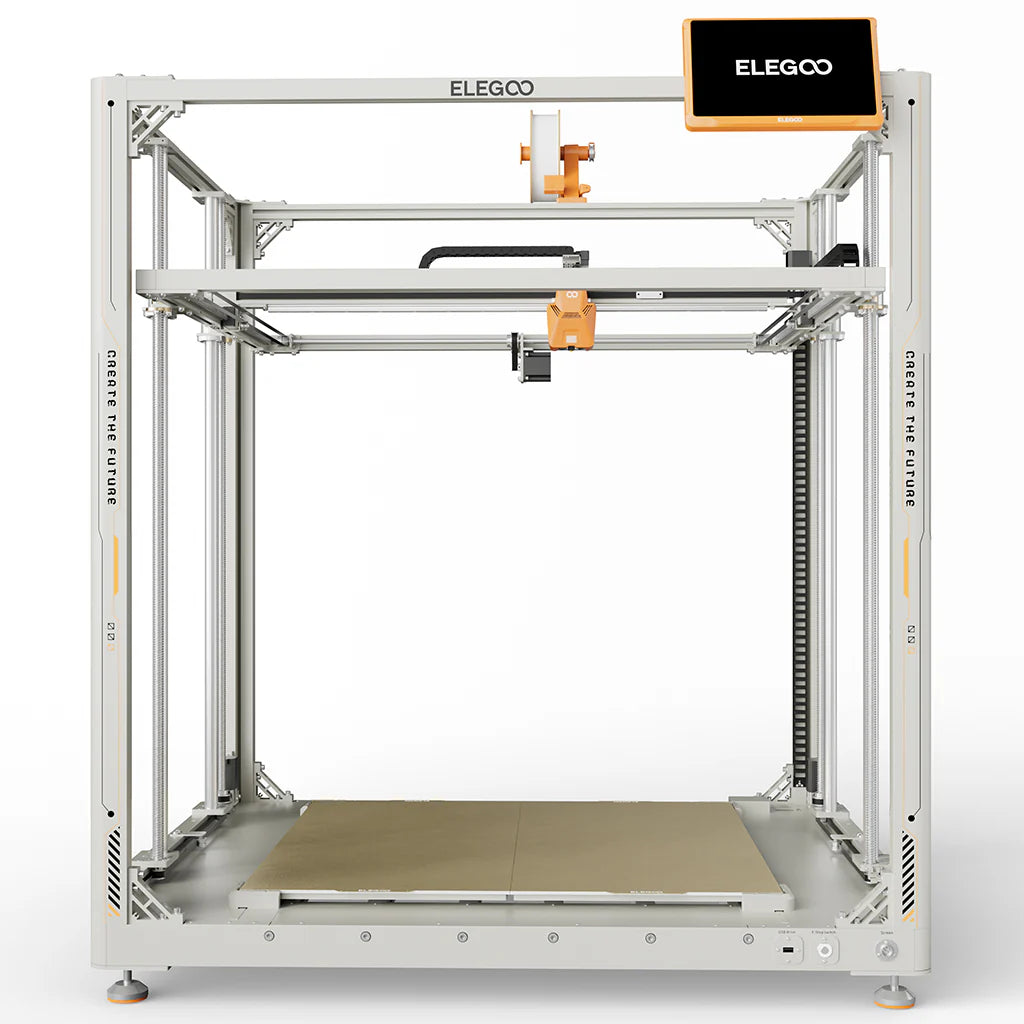

🌟 Elegoo OrangeStorm Giga – Large Format FDM 3D Printer

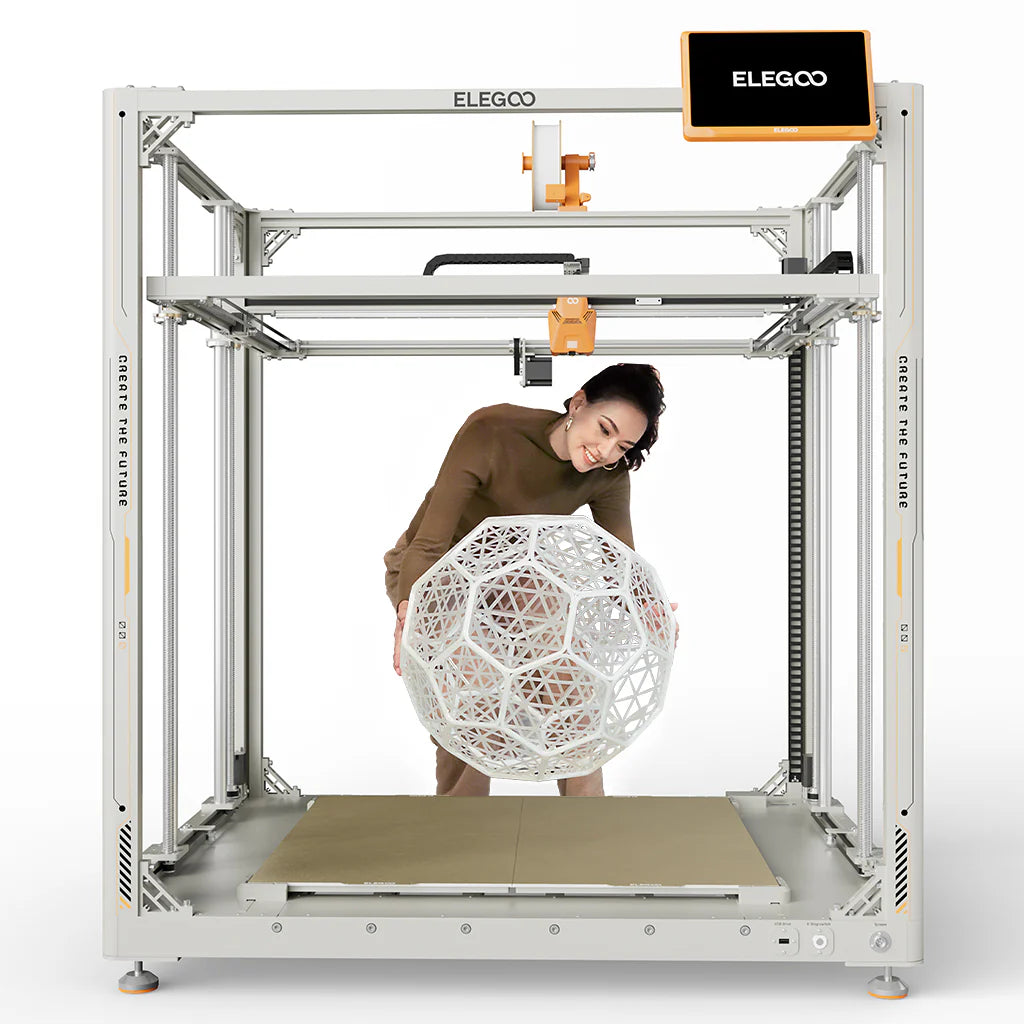

The Elegoo OrangeStorm Giga is an open-frame FDM 3D printer designed for large-scale projects that require unusual dimensions. With a print volume of 800 × 800 × 1000 mm — one of the largest on the market — it allows for giant parts to be printed in a single print, without the need to split models. Equipped with a CoreXY motion system, a quad-core processor, a modular bed with four independent PEI plates, and support for up to four simultaneous print heads, it is the ideal choice for professionals, design studios, set design, architecture, and large-scale industrial prototyping.
🔹 Why choose the Elegoo OrangeStorm Giga?
- Giant print volume — 800 × 800 × 1000 mm for large-scale parts without model splitting.

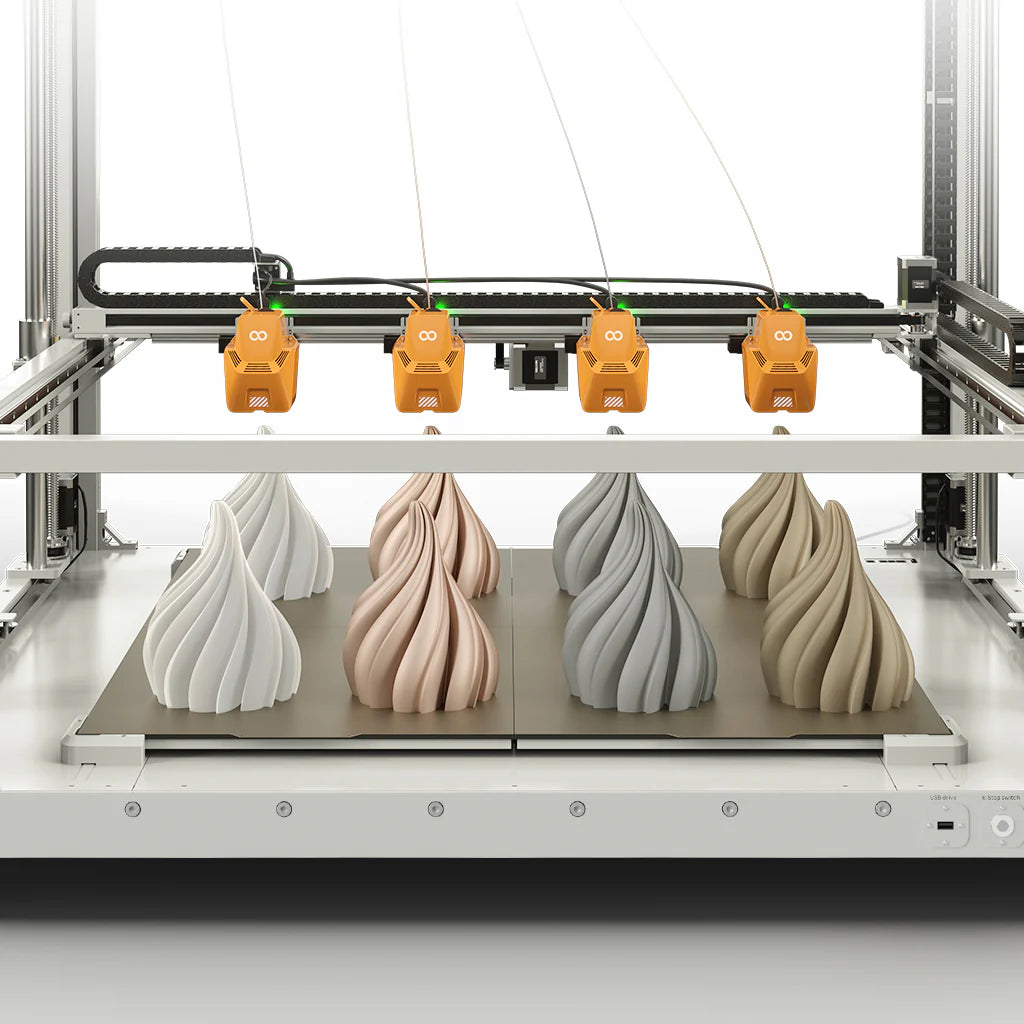

- Support for up to 4 simultaneous print heads — faster printing with multiple extruders (additional heads sold separately).
- High speed with CoreXY system — up to 300 mm/s (recommended 150 mm/s) with 5,000 mm/s² acceleration.
- Modular heated bed — 4 independent 410 × 410 mm PEI plates up to 100°C for uniform adhesion.
- Dual-gear extruder with high-temperature nozzle — up to 300°C for PLA, PETG, TPU, ABS, and Nylon.
- 100-point auto-levelling — high-precision inductive sensor for a perfect first layer.
- Removable 7-inch HD touchscreen — with model preview and multilingual support.
- Robust aluminium and carbon steel frame — with linear guides on X, Y, and Z axes for maximum stability.
- Klipper firmware — flexible, configurable, and compatible with the maker community.
- USB, LAN, and Wi-Fi connectivity — compatible with Windows, Linux, and macOS.
✅ Advantages of the OrangeStorm Giga
- Prints industrial-sized parts without the need for post-assembly.
- Filament run-out sensor and power loss recovery.
- Integrated LED lighting for real-time visual monitoring.
- Supports spools up to 5 kg.
- Compatible with ELEGOO Cura and other standard slicers.
⚙️ Technical Specifications
- Technology: FDM — open frame

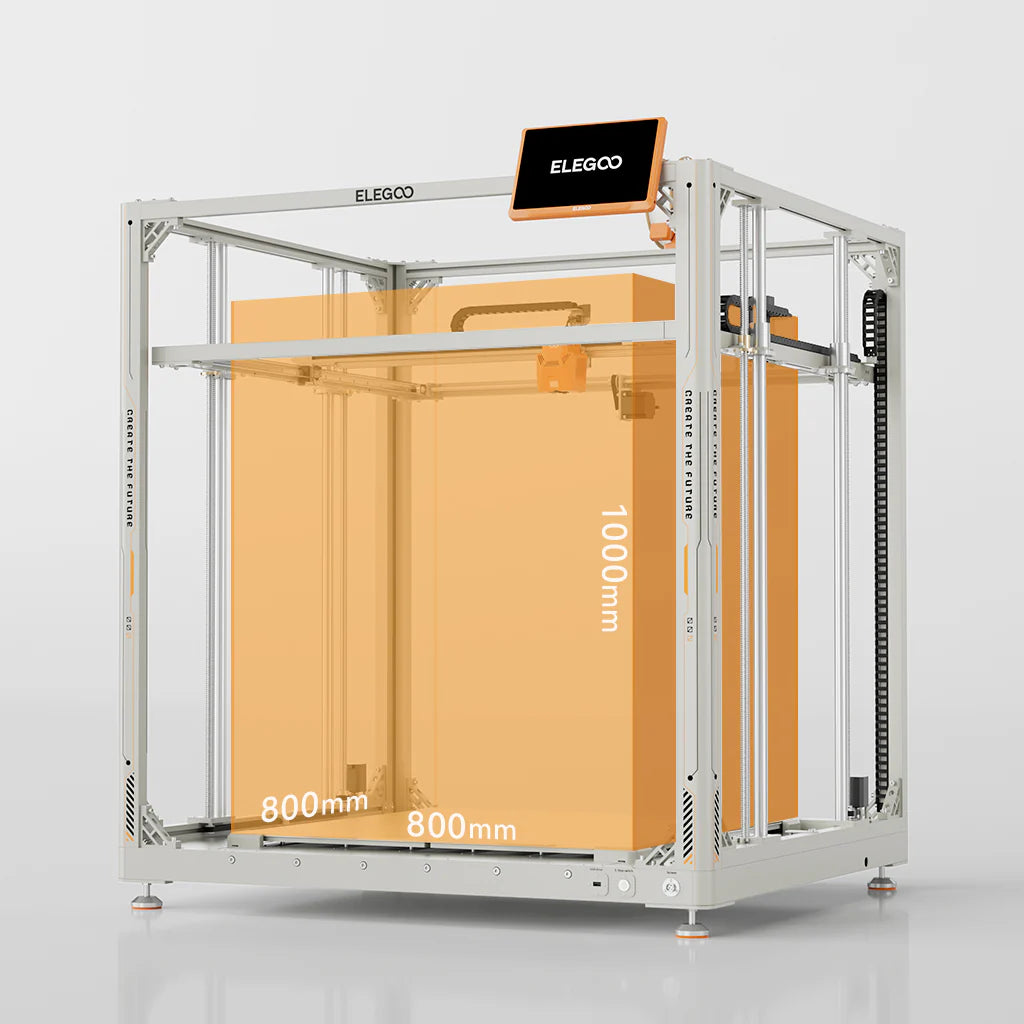

- Print volume: 800 × 800 × 1000 mm
- Bed: 4 independent 410 × 410 mm PEI plates | Max temperature: 100°C
- Max nozzle temperature: 300°C
- Nozzle included: 0.6 mm | Optional: 0.4 / 0.8 / 1.0 mm
- Max speed: 300 mm/s | Max acceleration: 5,000 mm/s²
- Processor: Quad-core 1.5 GHz
- Screen: Removable 7-inch HD touchscreen
- Connectivity: USB / LAN / Wi-Fi
- Compatible filaments: PLA, PETG, TPU, ABS, Nylon
- Machine dimensions: 1224 × 1164 × 1425 mm | Net weight: ~104 kg
💡 Recommendations
- For best results, use a print speed of 150 mm/s instead of the maximum speed.
- Due to weight and dimensions, transportation and installation require at least 2 people and adequate space.
- As it is an open frame, an additional enclosed chamber is recommended for materials sensitive to drafts like ABS or Nylon.
-
Compatible with filament spools up to 5 kg — ideal for long-duration prints without interruptions.
Material tested and approved by Smart3DPT ✅
