🌟 Flashforge Creator 5 Pro – 4 Independent Head FDM 3D Printer with Enclosed Chamber
The Flashforge Creator 5 Pro is an enclosed-chamber FDM 3D printer with 4 fully independent print heads — the FlashSwap™ system — which completely eliminates purge waste in multi-color and multi-material printing. Up to 500% faster than traditional single-filament systems for multi-color prints, with a heated chamber up to 65°C, medical-grade HEPA H13 filtration, travel speed up to 600 mm/s, and fully automatic calibration, the Creator 5 Pro is an affordable professional platform for makers, education, engineering design, and advanced family use.
🔹 What distinguishes the Flashforge Creator 5 Pro?
- 4 independent print heads (FlashSwap™) — each head has its own loaded filament; no swapping, no purging, no waiting between colors or materials.
- Zero purge waste — the elimination of the purge tower results in total filament and time savings on material changes.
- Up to 500% faster in multi-color printing — compared to single-filament systems with conventional purging.
- Actively heated chamber up to 65°C — heating mode for ABS, ASA, PC, and PA; cooling mode for PLA, TPU, PETG, and PLA-CF with the door closed.
- Medical-grade HEPA H13 filtration + activated coconut carbon — eliminates dust and VOCs released by ABS, ASA, and Nylon.
- Maximum travel speed: 600 mm/s | Printing speed: up to 300 mm/s | Acceleration: 30,000 mm/s².
- Maximum flow rate of 32 mm³/s — for fast printing without compromising quality.
- Full automatic calibration — auto-leveling and offset calibration between heads without manual intervention.
- Automatic surface compensation — Auto PA Calibration for perfect surfaces at any speed.
- Integrated Full HD camera (1280×720 @ 30 fps) — remote monitoring and management included.
- Door and lid open detection — chamber temperature monitoring for safety and stability.
- Filament run-out sensor on each head.
- Power outage recovery.
- Removable nozzle — 0.25 / 0.4 / 0.6 / 0.8 mm supported.
- Dual-band Wi-Fi (2.4 GHz and 5 GHz) + USB.
- Multi-printer management simultaneously.
- Compatible with Orca-Flashforge and OrcaSlicer.
✅ Advantages of the Creator 5 Pro
- True multi-color and multi-material printing without purging and waste.
- Enclosed chamber with active temperature control for PLA to technical engineering materials.
- All-in-one solution for makers, families, education, and engineering design.
- Reduced noise level from 65 dB to 55 dB thanks to the enclosed chamber.
⚙️ Technical Specifications
- Technology: FDM — enclosed chamber with 4 independent heads (FlashSwap™)
- Print volume: 256 × 256 × 256 mm
- Maximum nozzle temperature: 320°C | Maximum bed temperature: 120°C | Maximum chamber temperature: 65°C
- Maximum travel speed: 600 mm/s | Maximum print speed: 300 mm/s | Acceleration: 30,000 mm/s²
- Maximum flow rate: 32 mm³/s
- Standard nozzle: 0.4 mm | Optional: 0.25 / 0.6 / 0.8 mm
- Screen: 4" 800×480 color touchscreen
- Camera: Full HD 1280×720 @ 30 fps
- Filtration: HEPA H13 + activated coconut carbon
- Connectivity: USB + dual-band Wi-Fi (2.4/5 GHz)
- Max power: 1200W | Voltage: 100–240V AC

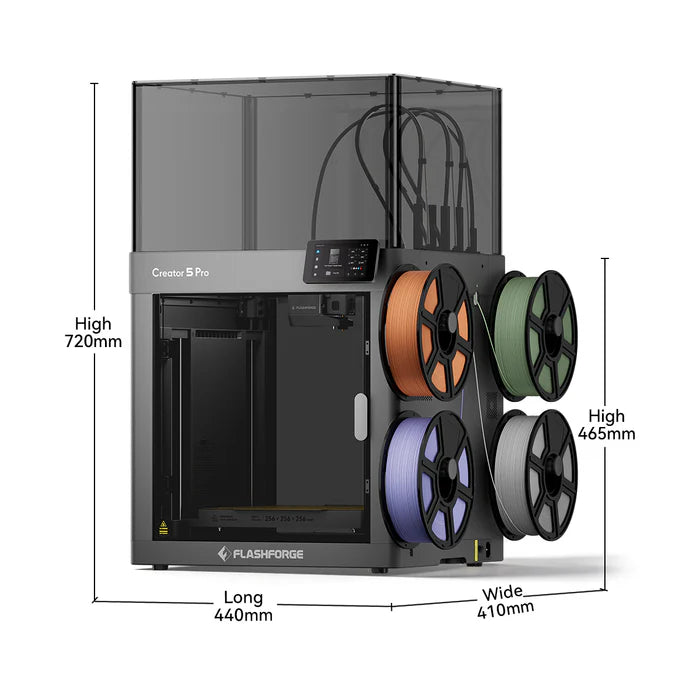

- Dimensions (with supports): 520 × 443 × 710 mm | Net weight: 18 kg
Supported filaments: PLA, PETG, TPU 90A–95A, PLA-CF, PETG-CF, PET, SILK, PVA, BVOH, ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF/GF, ABS-CF/GF, PPA-CF/GF; with enclosed chamber: PC, PA, PC-ABS, PPS-CF
💡 Notes and Recommendations
-
- Leave at least 200 mm to the right of the printer and 500 mm in front for access and maintenance.
- For materials like PC, PA, PC-ABS, and PPS-CF, using the heated chamber mode is recommended.
- Compatible with Flash Studio Desktop (formerly Orca-Flashforge) and OrcaSlicer.
Material tested and approved by Smart3DPT ✅
