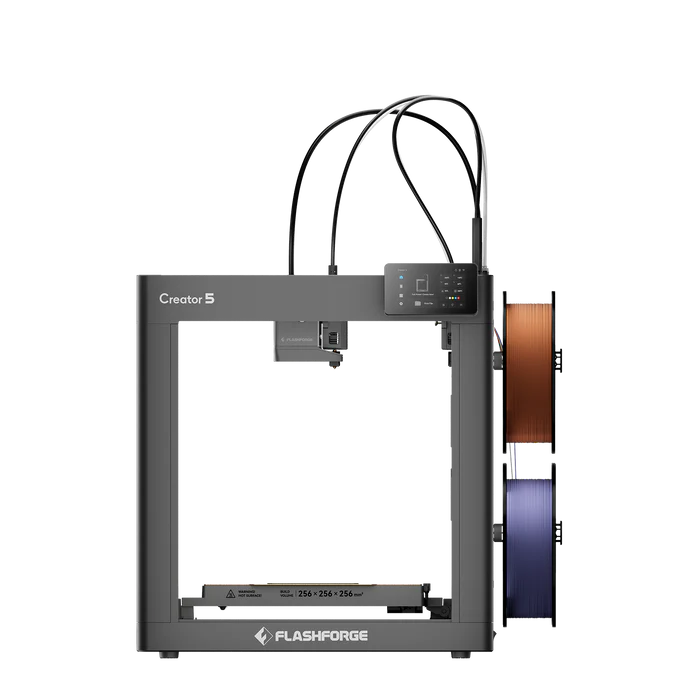

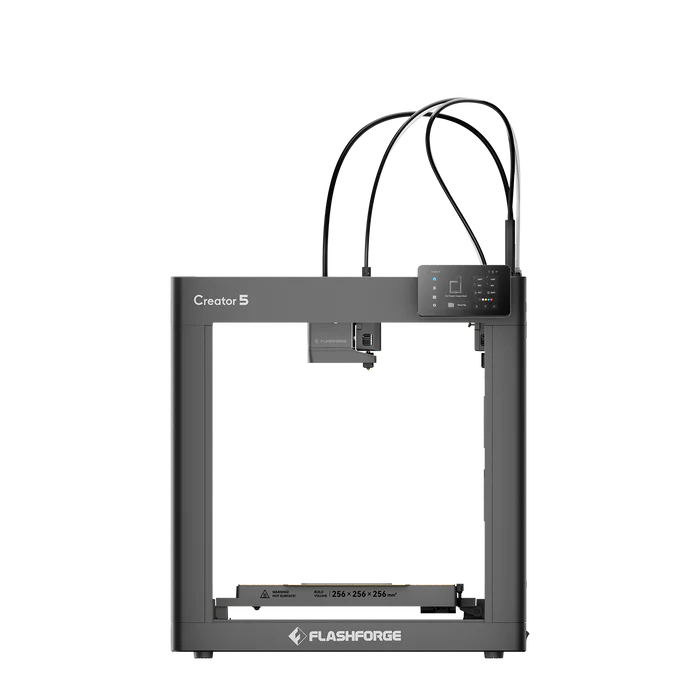

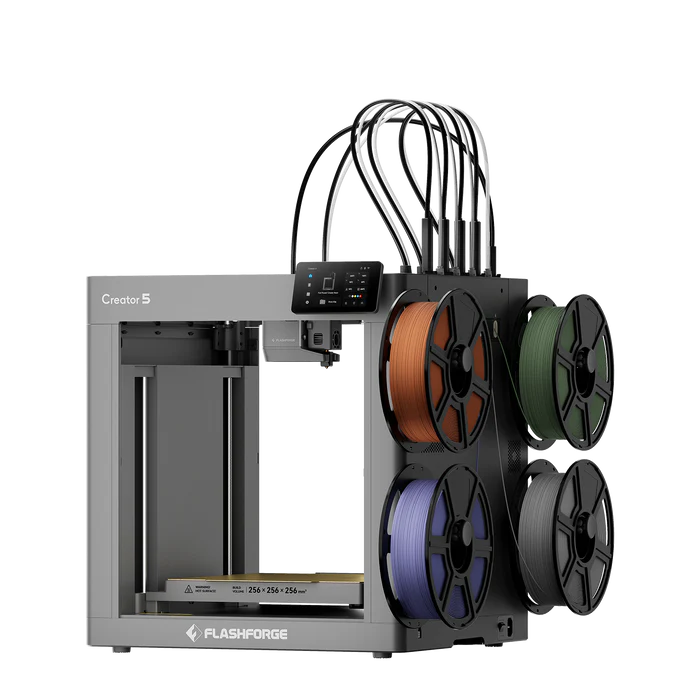

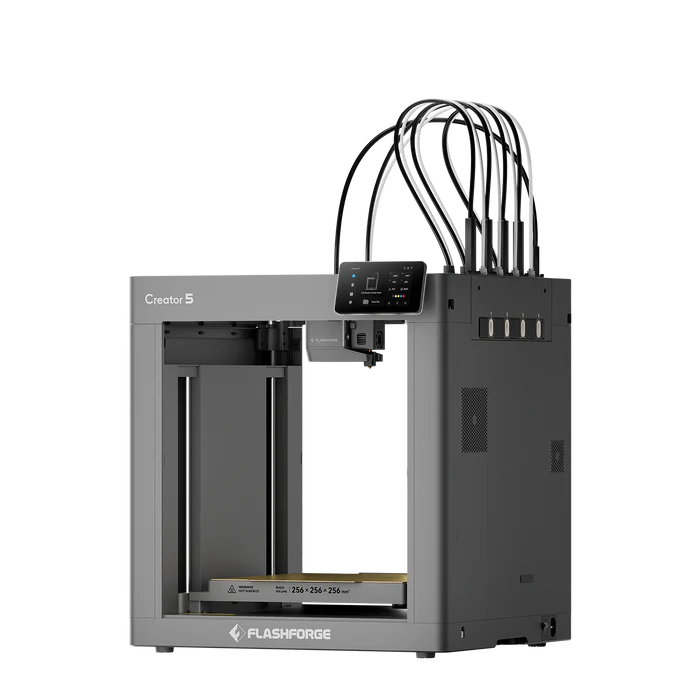

🌟 Flashforge Creator 5 – 4 Independent Head FDM 3D Printer
The Flashforge Creator 5 is an open-frame FDM 3D printer with 4 fully independent print heads — the FlashSwap™ system — that eliminates purge waste in multicolor and multi-material printing. With CoreXY, travel speed up to 600 mm/s, acceleration of 30,000 mm/s², 7-second head changes, fully automatic calibration, and compatibility with Flash Studio Desktop and OrcaSlicer, the Creator 5 positions a 4-head toolchanger at a truly affordable price — ideal for makers, creators, education, and small studios that regularly print in multicolor or multi-material.
🔹 What sets the Flashforge Creator 5 apart?
- 4 independent print heads (FlashSwap™) — each head has its own loaded filament; ultra-fast physical change (~7 seconds) with no purge, no waste, no waiting.
- Zero purge waste — complete elimination of the conventional purge tower, with significant filament and time savings.
- Up to 500% faster in multicolor printing — compared to single filament systems with conventional purging.
- High-rigidity CoreXY — robust structure for precise printing at high speeds.
- Maximum travel speed: 600 mm/s | Printing speed: up to 300 mm/s | Acceleration: 30,000 mm/s².
- Maximum flow rate of 32 mm³/s — for fast printing without loss of quality.
- Full automatic calibration — automatic leveling and offset calibration between heads without manual intervention.
- Automatic surface compensation (Auto PA Calibration) — perfect surfaces at any speed.
- Integrated Full HD camera (1280×720 @ 30 fps) — remote monitoring and management included.
- Filament run-out sensor on each head.
- Power loss recovery.
- Hardened steel nozzle as standard — compatible with abrasive filaments like PLA-CF and PETG-CF.
- Removable nozzle — 0.25 / 0.4 / 0.6 / 0.8 mm supported.
- Dual-band Wi-Fi (2.4 GHz and 5 GHz) + USB.
- Simultaneous multi-printer management.
- Compatible with Flash Studio Desktop (formerly Orca-Flashforge) and OrcaSlicer.
✅ Advantages of the Creator 5
- 4-head toolchanger without purging at an affordable price — a real alternative to the Prusa XL at a fraction of the cost.
- True multicolor and multi-material printing without waste.
- High speed with CoreXY for efficient production.
- Ideal for PLA, PETG, TPU, and carbon fiber and glass composites.
⚙️ Technical Specifications
- Technology: FDM — open frame with 4 independent heads (FlashSwap™) | CoreXY
- Print volume: 256 × 256 × 256 mm
- Maximum nozzle temperature: 320°C | Maximum bed temperature: 120°C
- Maximum travel speed: 600 mm/s | Maximum print speed: 300 mm/s | Acceleration: 30,000 mm/s²
- Maximum flow rate: 32 mm³/s
- Standard nozzle: 0.4 mm (hardened steel) | Optional: 0.25 / 0.6 / 0.8 mm
- Camera: Full HD 1280×720 @ 30 fps
- Connectivity: USB + Dual-band Wi-Fi (2.4/5 GHz)
- Maximum power: 1200W | Voltage: 100–240V AC
- Dimensions (with supports): 520 × 443 × 710 mm | Net weight: 18 kg
Supported filaments: PLA, PETG, TPU 90A–95A, PLA-CF, PETG-CF, PET, SILK, PVA, BVOH, ABS, ASA, PA-CF, PET-CF, PAHT-CF
💡 Notes and Recommendations
- The Creator 5 does not have an enclosed chamber or active heating — for technical materials such as ABS, ASA, PC, and PA, the Creator 5 Pro version with an enclosed chamber heated up to 65°C is recommended.
- It is not possible to upgrade the Creator 5 to Pro — they are distinct structures sold separately.
- Leave at least 200 mm to the right and 500 mm to the front for access and maintenance.
- Compatible with Flash Studio Desktop (formerly Orca-Flashforge) and OrcaSlicer.
Material tested and approved by Smart3DPT ✅
