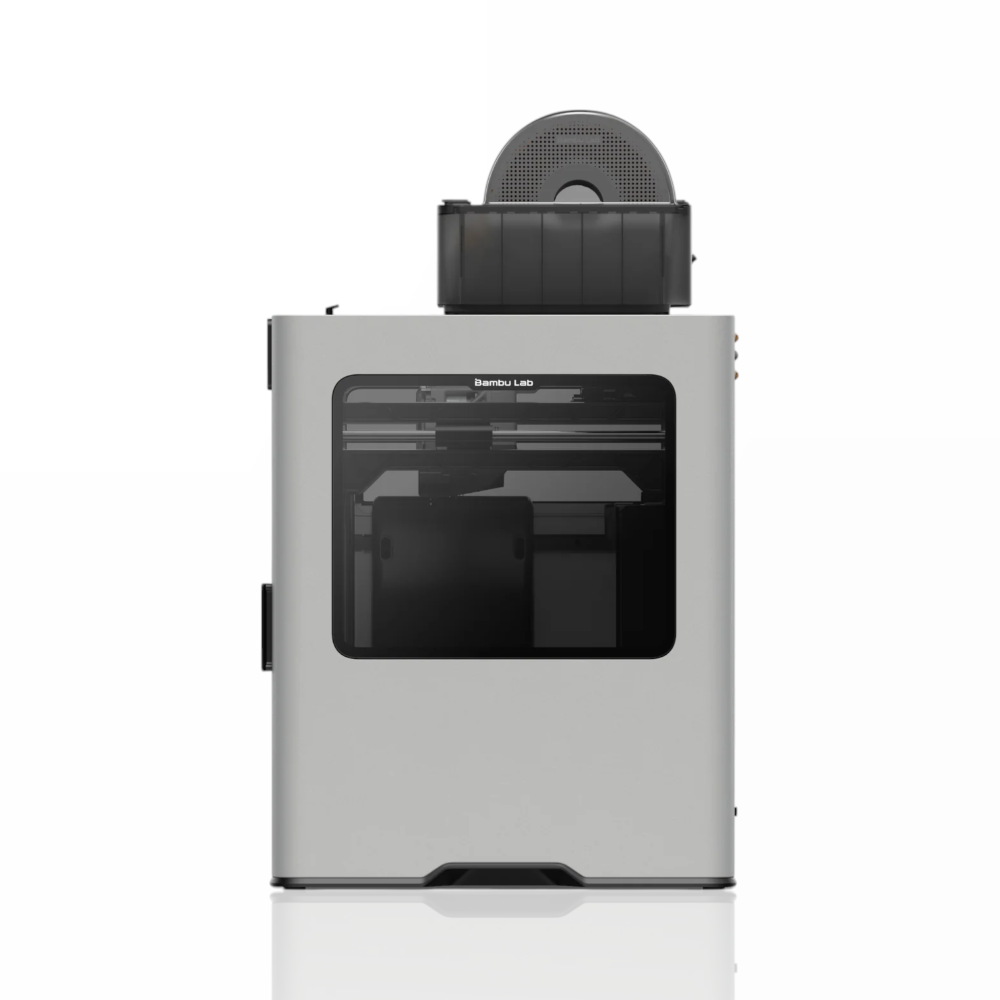

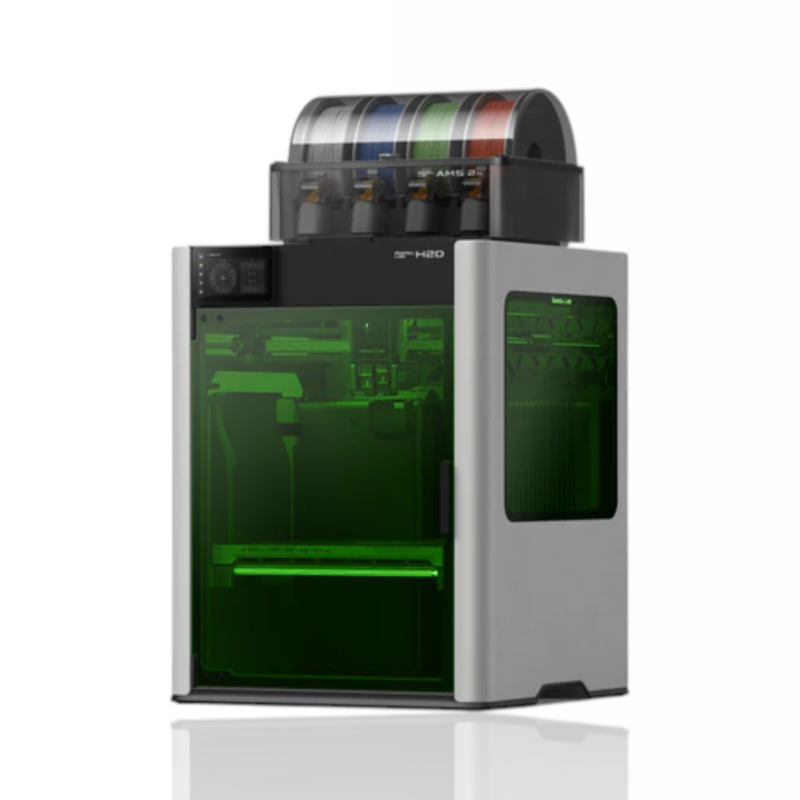

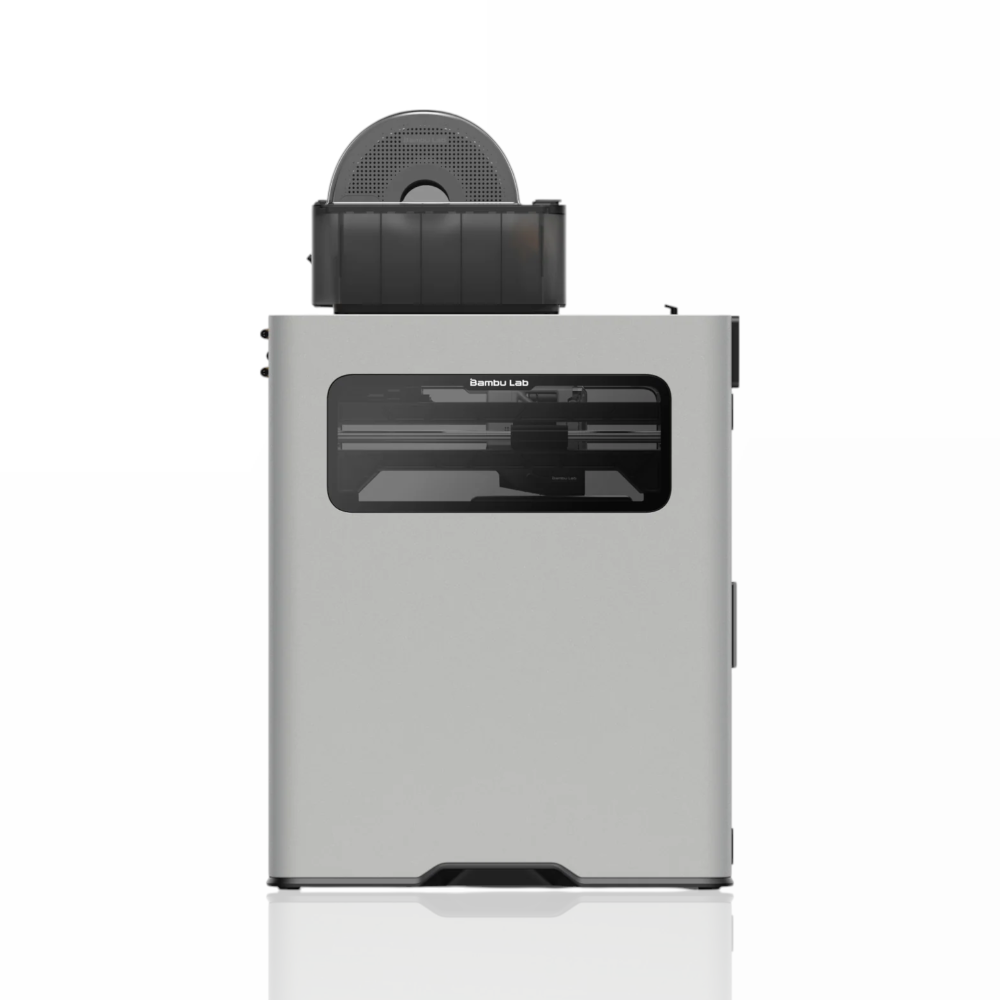

🌟 Bambu Lab H2D Laser Edition Full Combo – Dual Nozzle 3D Printer with Laser and AMS
[10W VERSION] / [40W VERSION] — choose the right power for your project.
The Bambu Lab H2D Laser Edition Full Combo is the complete version of the H2D: a closed-chamber FDM 3D printer with a dual nozzle, included AMS, integrated laser module, digital cutting module, BirdsEye camera, internal air pump, and laser protection windows. All in one machine — an all-in-one solution for multi-material 3D printing, laser engraving, digital cutting, and pen plotting.
🔹 What distinguishes the Bambu Lab H2D Laser Edition Full Combo?
- Independent dual nozzle — combine rigid and flexible, technical and standard materials, or reserve one nozzle for dedicated support material, with minimal purge and reduced waste.
- Integrated 455nm laser module (10W or 40W) — engraving and cutting on wood, rubber, leather, dark acrylic, metal sheets, and stone.
- Digital cutting module included — precision cutting on paper, vinyl, leather, and other materials up to 0.5 mm thick.
- Integrated BirdsEye camera — precision spatial alignment up to 0.3 mm and automatic project arrangement on available material.
- Internal air pump + exhaust tubing — efficient fume management during laser operations.
- Laser-protected windows and door — Class 1 safety in normal operation.
-
Vision Encoder with 50 µm precision — head movement monitoring and correction with 5 µm optical resolution.
- DynaSense servo PMSM extruder — 20 kHz sampling for precise control and automatic jam detection.
- Nozzle camera with AI — real-time detection of material buildup, deviations, and failures.
- Actively heated chamber up to 65°C + HEPA H12 filtration.
- 15 sensors in the filament path — continuous monitoring of all critical parameters.
- AMS included — automatic filament management with integrated swapping and backup.
✅ Advantages
- All-in-one solution: 3D printing + laser + cutting + pen on a single platform.
- Compatible with PLA, PETG, TPU, ABS, ASA, PA, PC, BVOH, and carbon fiber/glass reinforced composites.
- Supports up to 4 AMS 2 Pro units + 8 AMS HT units (maximum 25 colors).
- AI pre-print checklist before each cycle.
- Compatible with Bambu Studio, Bambu Suite, Bambu Handy, and third-party slicers.
- 5-inch touchscreen with 2 TOPS NPU.
⚙️ Technical Specifications
- Technology: FDM — closed chamber with dual nozzle
- Print Volume: 325 × 320 × 325 mm³ (single nozzle) | 300 × 320 × 325 mm³ (dual nozzle) | 350 × 320 × 325 mm³ (total)
- Max Nozzle Temperature: 350°C | Max Bed Temperature: 120°C | Max Chamber Temperature: 65°C
- Max Speed: 1000 mm/s | Max Acceleration: 20,000 mm/s²
- Max Flow (standard): 40 mm³/s | (optional high flow): 65 mm³/s
- Screen: 5-inch touchscreen (720×1280) | NPU: 2 TOPS
- Max Power: 2200W @ 220V / 1320W @ 110V | Dimensions: 492 × 514 × 626 mm | Net Weight: 31 kg
Laser Module — differences between versions:
|
10W Laser
|
40W Laser
|
|
Power
|
10W ±1W
|
40W ±2W
|
|
Max Engraving Speed
|
400 mm/s
|
1000 mm/s
|
|
Max Cutting Thickness (basswood)
|
5 mm
|
15 mm
|
|
Engraving Area
|
310 × 270 mm
|
310 × 250 mm
|
Digital Cutting Module (included in both versions):
- Cutting Area: 300 × 285 mm | Plotting Area: 300 × 255 mm
- Max Cutting Thickness: 0.5 mm | Materials: paper, vinyl, leather, and more
💡 Notes and Recommendations
- The 10W version is ideal for detailed engraving and cutting thin materials. The 40W version is the choice for cutting thicker materials and much higher engraving speeds.
- It is not recommended to use A1 series hotends with this printer.
- Not compatible with AMS Lite. Compatible with 1st generation AMS but without drying function support.
- Do not leave the machine unsupervised during laser operations — keep flammable materials away.
Material tested and approved by Smart3DPT ✅
