🌟 Bambu Lab H2D – Dual Nozzle 3D Printer

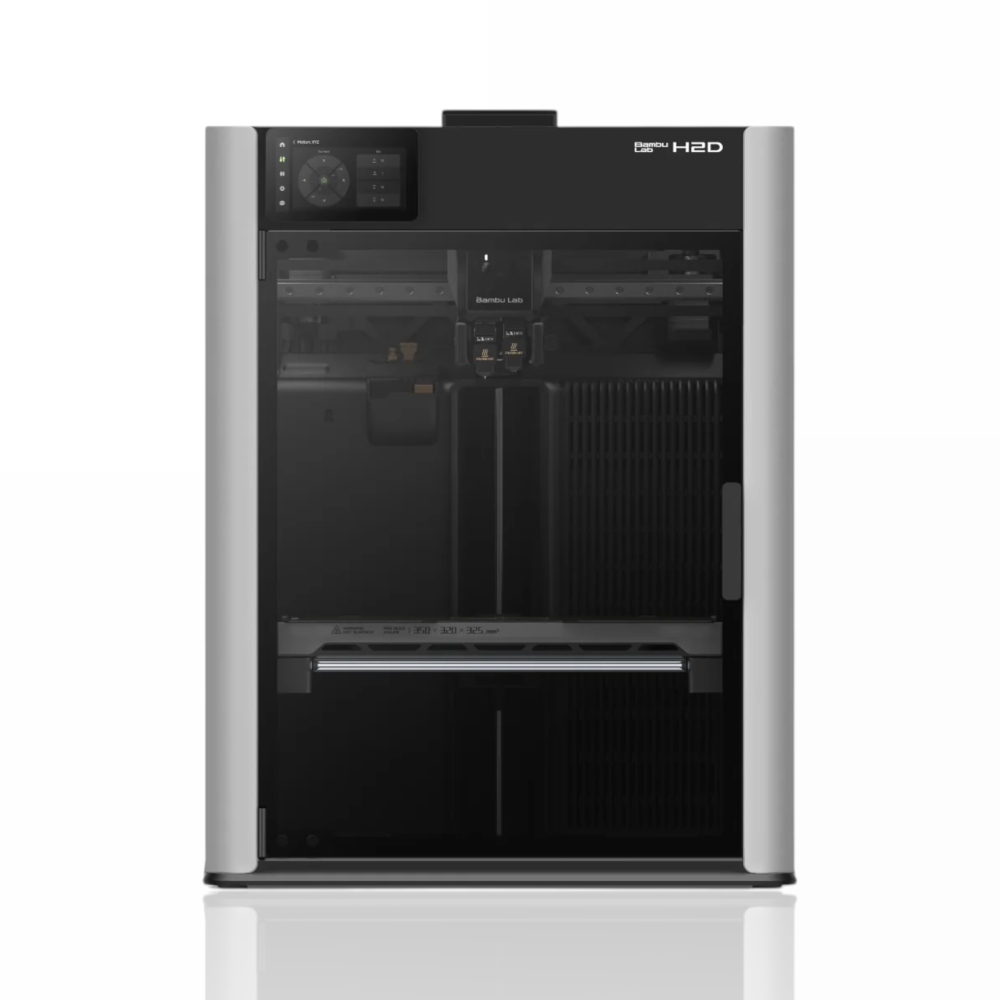

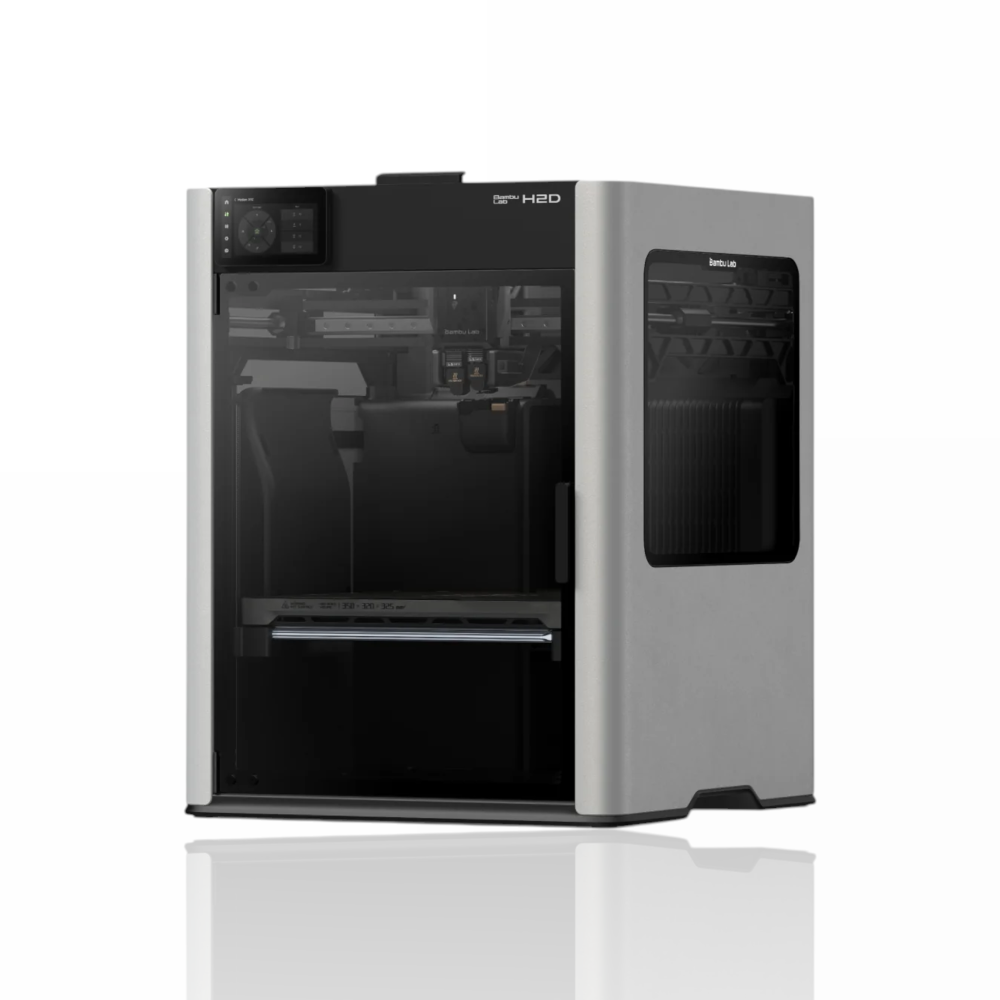

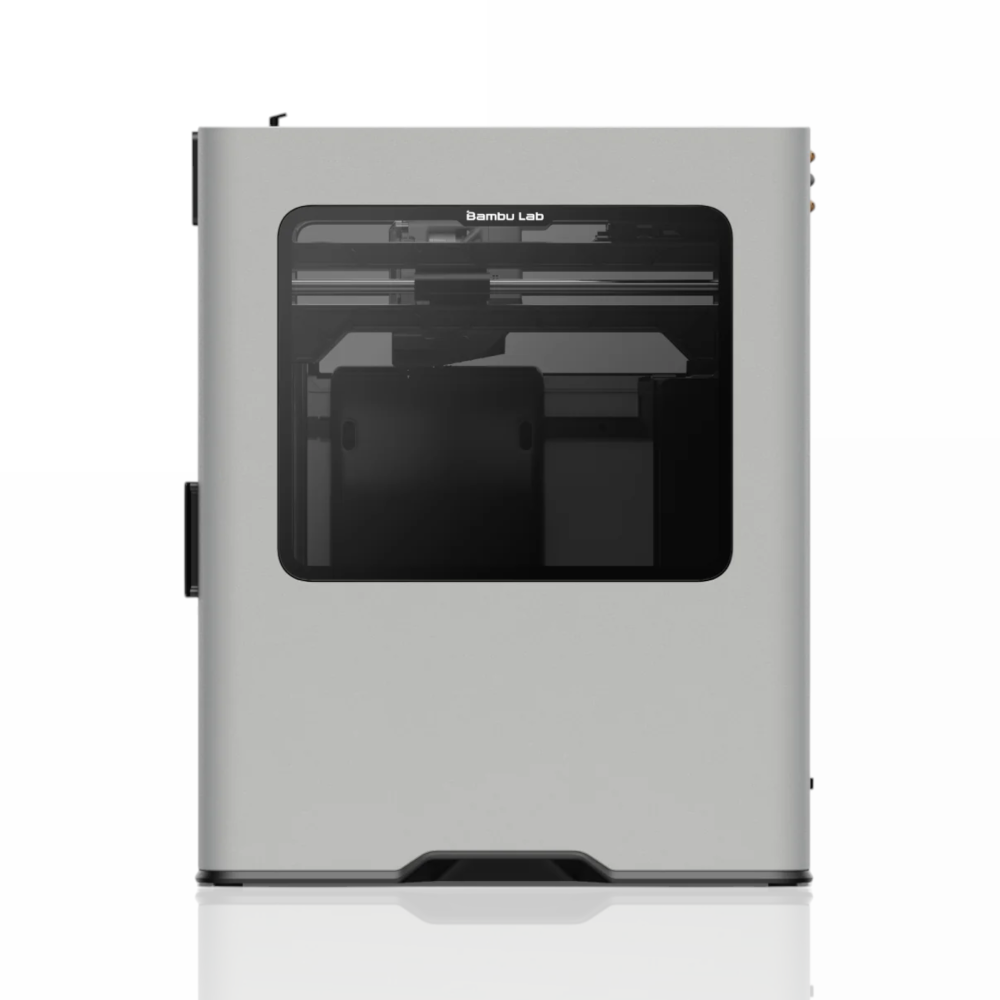

The Bambu Lab H2D is a next-generation enclosed FDM 3D printer equipped with an independent dual nozzle, a high-precision PMSM servo extruder, a Vision Encoder with 5 μm resolution, and an actively heated chamber at 65°C. Designed for makers and professionals who want to combine different materials in a single print — rigid and flexible, technical and standard, or dedicated support material — with a king-size print volume and compatibility with optional laser and digital cutting modules.
⚠️ This version does not include AMS. If you want immediate multi-color printing, consider the H2D AMS Combo version.
🔹 What distinguishes the Bambu Lab H2D?
- Independent dual nozzle — combines flexible and rigid, technical and standard materials, or reserves a nozzle exclusively for soluble/breakable support material, reducing purge cycles and waste.
- DynaSense extruder with PMSM servo — 20 kHz torque and position sampling for precise extrusion control and automatic clog detection.
-
Vision Encoder with 50 μm accuracy — monitors and corrects tool head movement with 5 μm optical resolution for consistent precision across the entire work area.
- Nozzle camera with AI — monitors extrusion directly at the nozzle tip, detecting material buildup, deviations, and failures in real-time.
- Integrated BirdsEye camera — spatial alignment with up to 0.3 mm accuracy and automatic project arrangement on available material.
- King-size print volume — up to 350 × 320 × 325 mm, one of the largest in its category.
- Actively heated chamber up to 65°C — eliminates warping in demanding technical materials.
- Optional high-flow hotend — consistent printing at 600 mm/s with up to 65 mm³/s.
- HEPA H12 + activated coconut carbon filtration.
- 15 sensors in the filament path — continuous monitoring of speed, tension, location, temperature, and extrusion pressure.
- Compatible with 10W/40W laser module and digital cutting module (not included).
✅ Advantages
- Compatible with PLA, PETG, TPU, ABS, ASA, PA, PC, BVOH, and carbon fiber/glass reinforced composites.
- AI pre-print checklist before each cycle.
- Supports up to 4 AMS 2 Pro units + 8 AMS HT units (maximum 25 colors) — purchasable separately.
- 5-inch touchscreen with 2 TOPS NPU.
- Compatible with Bambu Studio, Bambu Handy, and third-party slicers.
⚙️ Technical Specifications
- Technology: FDM — enclosed chamber with dual nozzle
- Print volume: 325 × 320 × 325 mm³ (single nozzle) | 300 × 320 × 325 mm³ (dual nozzle) | 350 × 320 × 325 mm³ (total)
- Max nozzle temperature: 350°C | Max bed temperature: 120°C | Max chamber temperature: 65°C
- Max speed: 1000 mm/s | Max acceleration: 20,000 mm/s²
- Max flow (standard): 40 mm³/s | (optional high flow): 65 mm³/s
- Included nozzle: 0.4 mm (hardened steel) | Supported: 0.2 / 0.4 / 0.6 / 0.8 mm
- Screen: 5-inch touchscreen (720×1280) | NPU: 2 TOPS
- Max power: 2200W @ 220V / 1320W @ 110V
- Dimensions: 492 × 514 × 626 mm | Net weight: 31 kg
💡 Notes and Recommendations
- Version without AMS — for multi-color printing, add AMS 2 Pro separately (supports up to 25 colors in total).
- Not compatible with AMS Lite. Compatible with 1st generation AMS but without drying function support.
- The laser module and cutting module are not included — available as separate accessories.
-
The high-resolution Vision Encoder (5 μm) is sold separately.
- Due to weight and dimensions, transportation and installation require at least 2 people.
- Not recommended to use A1 series hotends with this printer.
Material tested and approved by Smart3DPT ✅
