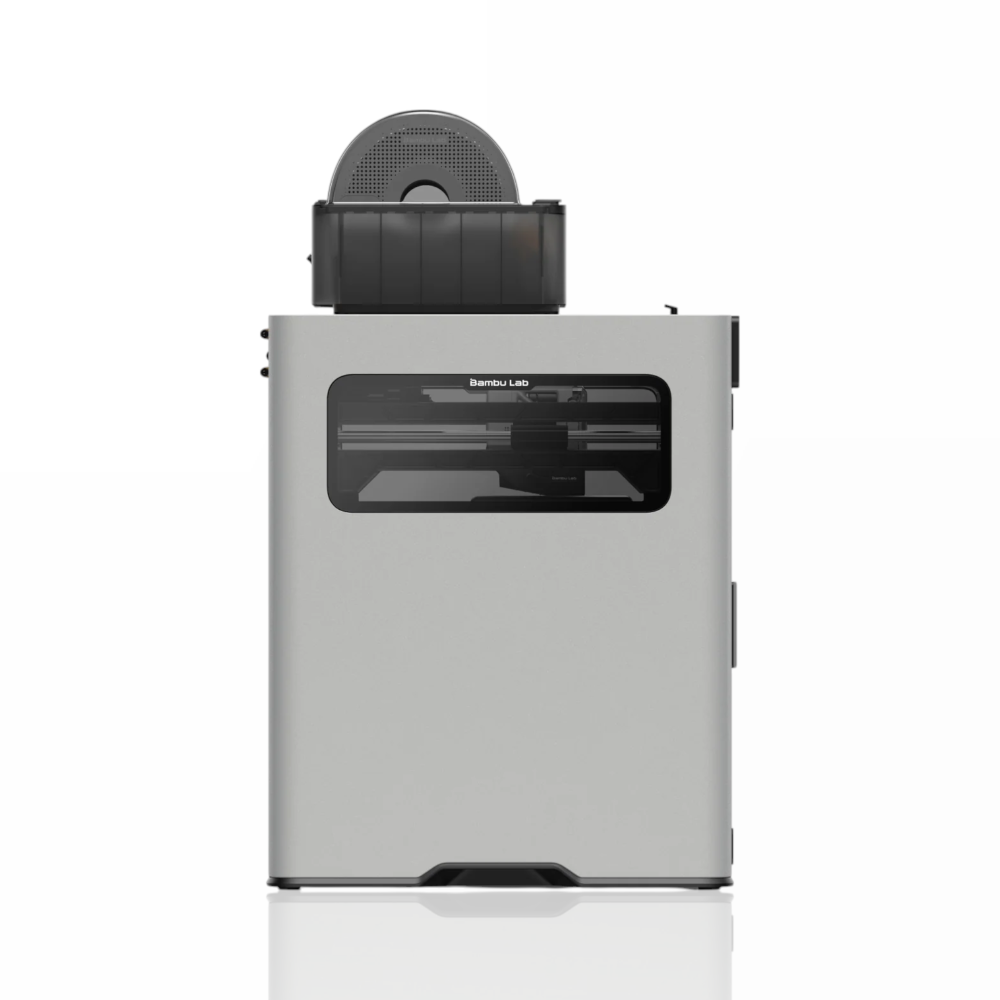

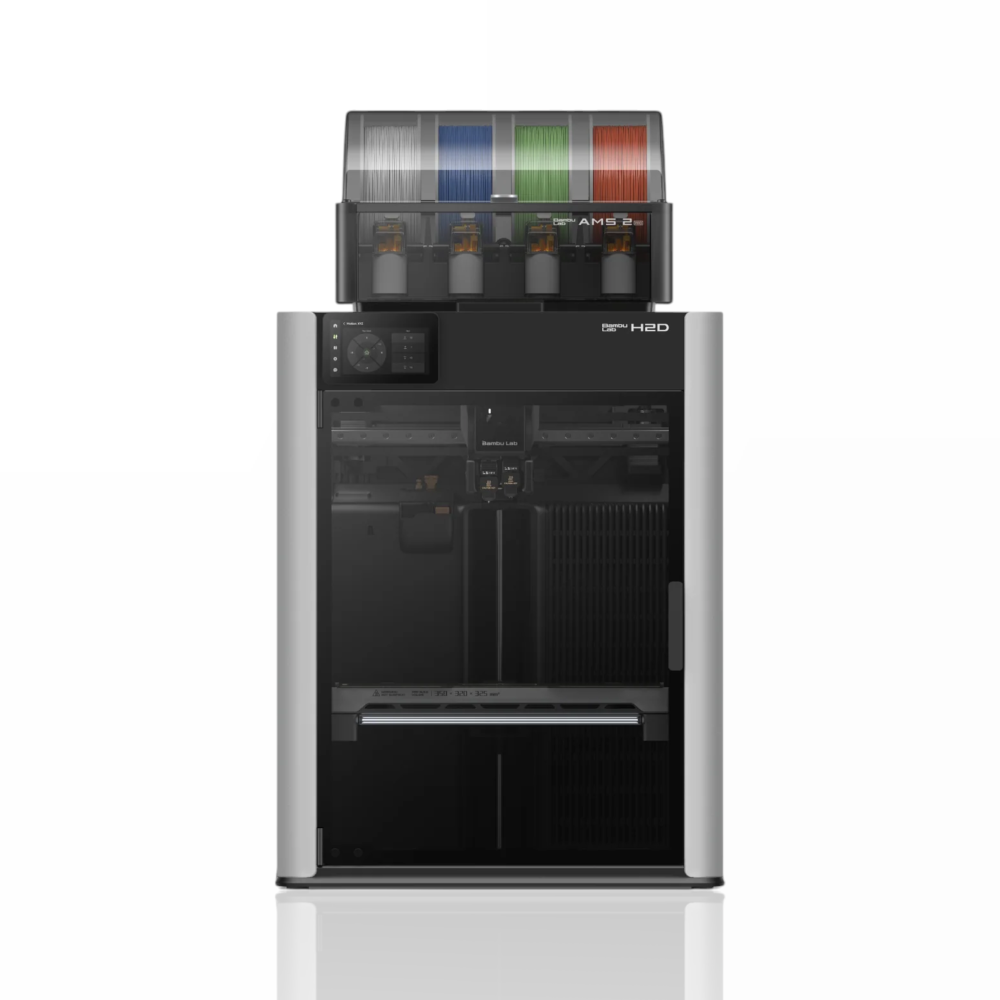

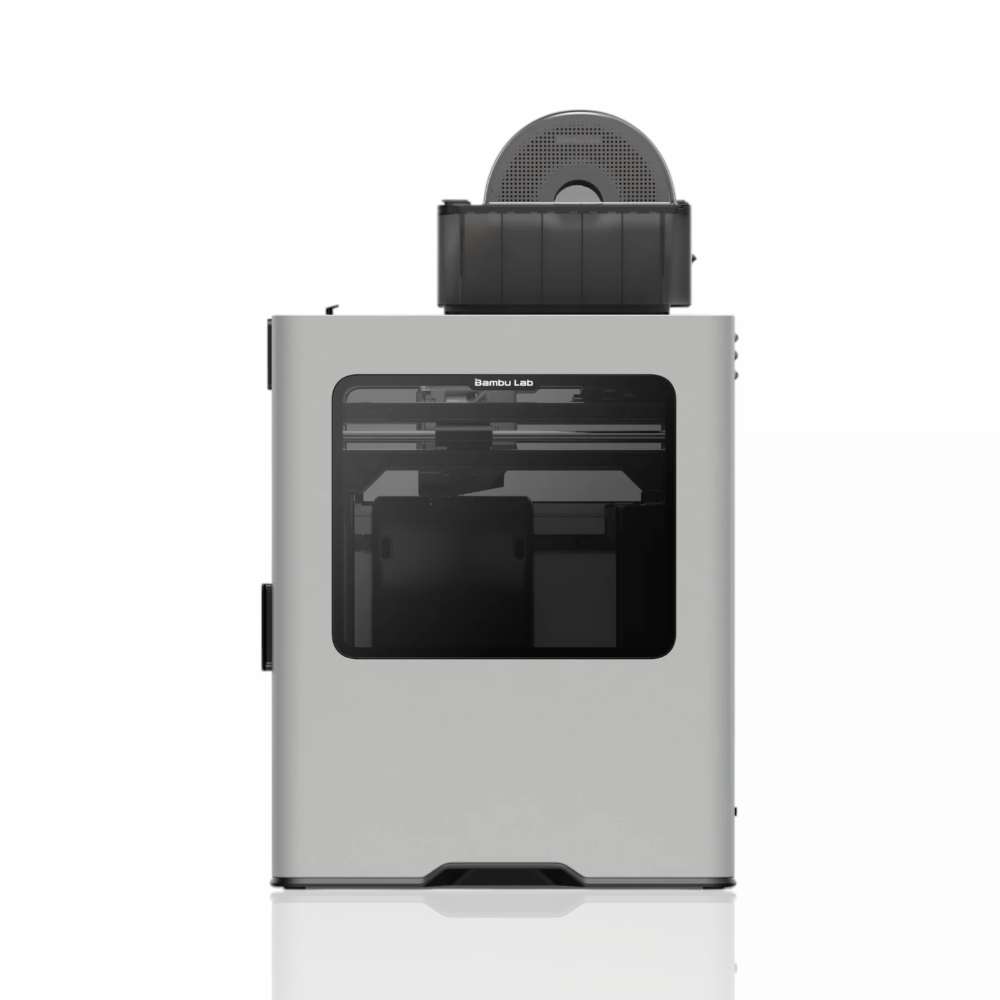

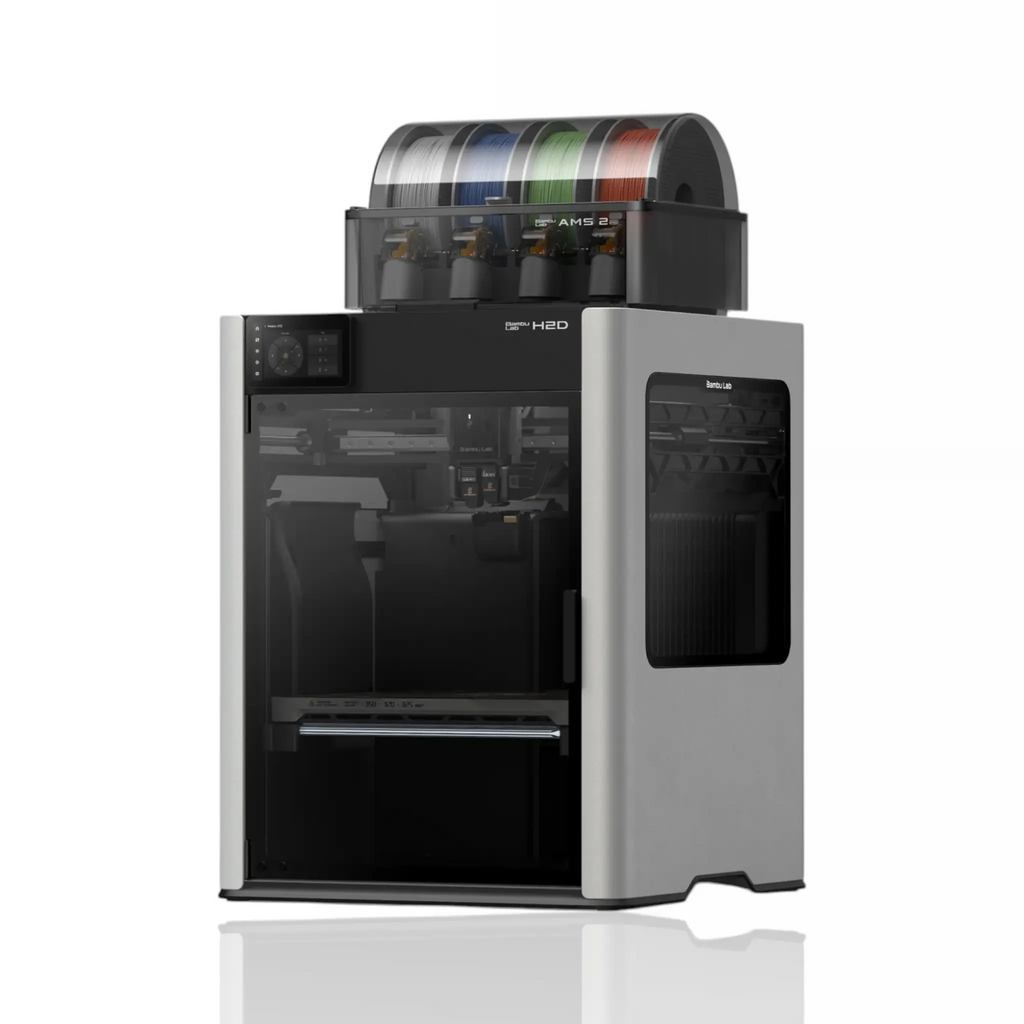

🌟 Bambu Lab H2D AMS Combo – Dual-Nozzle 3D Printer with AMS
The Bambu Lab H2D AMS Combo is a next-generation enclosed-chamber FDM 3D printer equipped with dual nozzles, an integrated filament management system and included AMS. Designed for makers and professionals who want to combine different materials in a single print — rigid and flexible, technical and standard, dedicated support material and printing material — the H2D AMS Combo is one of the most versatile and complete personal manufacturing platforms available today.
🔹 What sets the Bambu Lab H2D AMS Combo apart?
- Independent dual nozzles — combine flexible and rigid materials, technical and standard materials, or dedicate one nozzle exclusively to soluble/breakaway support material.
- More efficient multicolour printing — the dual-nozzle system reduces purge cycles during multicolour prints, saving time and material.
- DynaSense extruder with PMSM servo — torque and position sampling at 20 kHz for precise extrusion control and automatic clog detection.
-
Vision Encoder with 50 μm accuracy — monitors and corrects toolhead movement with 5 μm optical resolution for consistent accuracy across the entire build area.
- AI nozzle camera — monitors extrusion directly at the nozzle tip, detecting material buildup, deviations and failures in real time.
- Integrated BirdsEye camera — true spatial alignment with accuracy up to 0.3 mm and automatic project arrangement on the available material.
- Actively heated chamber up to 65°C — eliminates warping when printing demanding technical materials.
- HEPA H12 + activated carbon filtration — superior VOC and particle filtration.
- 15 sensors along the filament path — continuous monitoring of speed, tension, position, temperature and extrusion pressure.
- Compatible with 10W/40W laser module and digital cutting module (not included with this version).
- AMS included — automatic filament management with integrated drying, feeding and switching.
✅ Advantages
- Compatible with PLA, PETG, TPU, ABS, ASA, PA, PC, BVOH and carbon/glass fibre-reinforced composites.
- AI pre-print checklist — checks chamber integrity, hardware configuration and digital-to-physical alignment before each print.
- Supports up to 4 AMS 2 Pro units + 8 AMS HT units (maximum 25 colours simultaneously).
- 5-inch touchscreen with 2 TOPS NPU for AI processing.
- Optional high-flow hotend — up to 65 mm³/s for consistent printing at 600 mm/s.
- Compatible with Bambu Studio, Bambu Handy and third-party slicers (SuperSlicer, PrusaSlicer, Cura).
⚙️ Technical Specifications
- Technology: FDM — enclosed chamber with dual nozzles
- Build volume: 325 × 320 × 325 mm³ (single nozzle) | 300 × 320 × 325 mm³ (dual nozzle) | 350 × 320 × 325 mm³ (total)
- Maximum nozzle temperature: 350°C
- Maximum bed temperature: 120°C
- Maximum chamber temperature: 65°C
- Maximum speed: 1000 mm/s | Maximum acceleration: 20,000 mm/s²
- Maximum flow (standard): 40 mm³/s | Maximum flow (optional high-flow): 65 mm³/s
- Included nozzle: 0.4 mm (hardened steel) | Supported: 0.2 / 0.4 / 0.6 / 0.8 mm
- Cameras: Live View 1920×1080 + Nozzle + Toolhead + BirdsEye
- Display: 5-inch touchscreen (720×1280)
- Maximum power: 2200W @ 220V / 1320W @ 110V
- Dimensions: 492 × 514 × 626 mm | Net weight: 31 kg
💡 Notes and Recommendations
- Due to its weight and dimensions, transport and installation require at least 2 people.
- The laser module and digital cutting module are not included — they are available as separate accessories. The standard version can be upgraded to the Laser Edition with an upgrade kit.
- Not compatible with AMS Lite. Compatible with first-generation AMS, but without support for the drying function.
-
The high-resolution Vision Encoder (5 μm) is sold separately.
- We recommend not using A1 series hotends with this printer to ensure the best print quality.
Product tested and approved by Smart3DPT ✅
